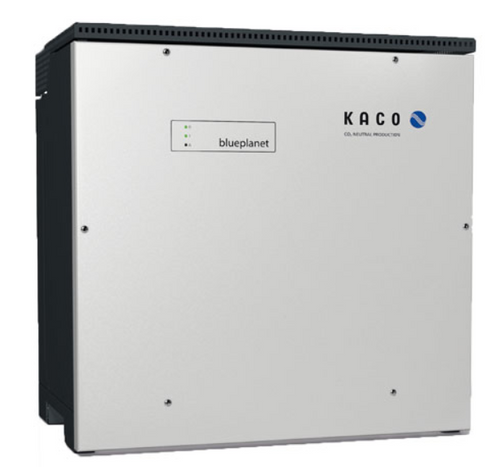

Kaco BLUEPLANET 87.0 TL3 S M1 INT Power Inverter

£5,054.47
SKU:
1001784
Weight:
78.20 KGS
Width:
69.90 CM
Height:
45.00 CM
Depth:
71.90 CM
Shipping:
Calculated at checkout
Quantity:

Product Description

 String Inverter Kaco blueplanet 87.0 TL3 S

**Guarantee period runs since ca. 08/2020**

- Max. Recommended PV generator power: 130 500 W.
- MPP range: 563 - 1 300 V
- Working range: 563 - 1 450 V
- Nominal voltage / starting voltage: 600 V / 645 V
- Max. Open circuit voltage: 1 500 V
- Max. Input current: 160 A
- Number of MPP trackers: 1
- Connection per tracker 1 - 2
- Rated power: 87,000 VA
- Max. Output: 87,000 VA
- Nominal voltage: 380 V (3P + PE)
- Nominal current: 3 x 132.3 A
- Max. Current: 3 x 132.3 A

Technical Data

Max. input voltage DC (V): 1.500,00

Arc Fault Circuit Interrupter: no

Max. efficiency (%): 99,00
European efficiency (%): 98,60
Number of Mpp-Trackers: 1
Max. input current (A): 160,00
Max. AC power (kVA): 87,00
AC nominal power (kVA): 87,00
Display: w/o display
Topology: transformerless
Interface 1: Ethernet
Interface 2: RS485
Feed-in phases: 3
Step-Up converter: no
Number of string inputs (pcs): 1
Degree of protection (IP): IP66
Maximum voltage input Mpp (V): 1450
Minimum voltage input Mpp (V): 563
Max. generator power DC (kWp): 130,50

Article Details

Supplier item: 1001784
Manufacturer: Kaco
Intrastat Product number: 85044088

Dimensions

Width (mm): 699
Height (mm): 450
Length (mm): 719
Weight (kg): 78,20
Pal. Dim. LxBxH (mm): 830,00

Warranty

Product Warranty (yr): 5
Warranter: Kaco

Product Documentation
Kaco BluePlanet 87.0-150 TL3 Datasheet
Kaco BluePlanet 87.0-150 TL3 Operations Manual
